Filtec Precision Ceramics Corporation (USA)

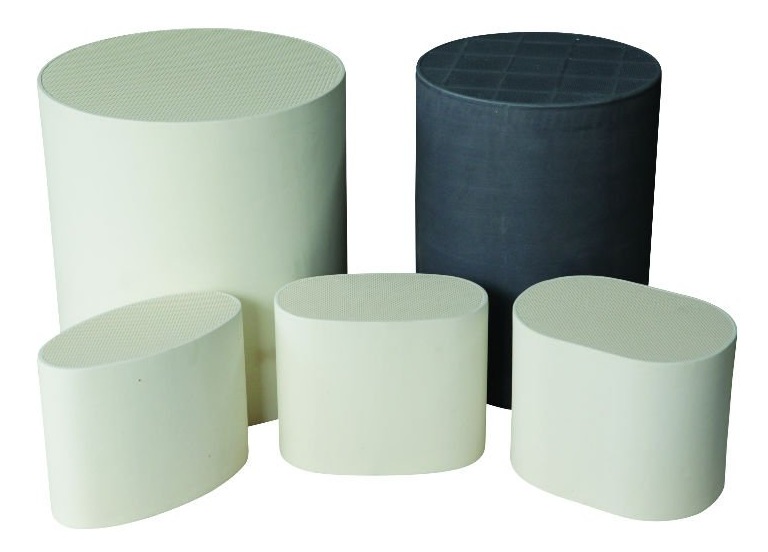

Ceramic Substrates
Corning substrates are honeycomb-like structures with thousands of parallel
channels. The walls of these channels provide the surface for precious-metal
catalysts that convert noxious emissions into carbon dioxide, nitrogen and water
vapor.

Filtec substrates enable highly efficient emissions control systems by offering:

High surface area
Low pressure drop
Rapid light-off
Thermal-mechanical durability
System cost efficiency
Type
HC
Wall Thickness
0.17 mm +0.05mm / -0.02mm
Volume Weight
=<550 g/L =/- 60 g/L
Water Absorption
24 =/- 4%
Coefficient of Thermal Expansion
〈1.5×10^-6/K
Soften Temperature
> 1410 oC
Thermal Shock Resistance
> 550 oC
Specification:
CF200-Al
CF400-Iron
CF600-Steel
